Phi, Pi and the
Great Pyramid of Egypt at Giza

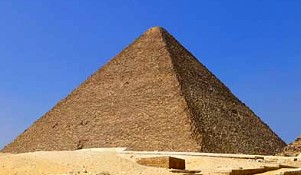

The Great
Pyramid of Egypt is based on Golden Ratio proportions
There is still some debate as to whether the Great Pyramid of Giza in
Egypt, built around 2560 BC, was constructed with dimensions based on phi, the
golden ratio. Its once flat, smooth outer shell is gone and all that
remains is the roughly-shaped inner core, so it is difficult to know with
certainty.
There is compelling evidence, however, that the design of the pyramid
embodied these foundations of mathematics and geometry:
§ Phi, the Golden Ratio that appears throughout nature.
§ Pi, the circumference of a circle in relation to its diameter.
§ The Pythagorean Theorem – Credited by tradition to mathematician Pythagoras
(about 570 – 495 BC), which can be expressed as a² + b² = c².
First, phi is the only number which has the mathematical property of its
square being one more than itself:
Φ + 1 = Φ²
or
1.618… + 1 = 2.618…
By applying the above Pythagorean equation to this, we can construct
a right triangle, of sides a, b and c, or in this case a Golden Triangle of
sides √Φ, 1 and Φ, which looks like this:
This creates a pyramid with a base width of 2 (i.e., two triangles above
placed back-to-back) and a height of the square root of Phi, 1.272. The
ratio of the height to the base is 0.636.
The Great Pyramid has a base of 230.4 meters (755.9 feet) and an estimated original
height of 146.5 meters (480.6 feet). This also creates a height to base ratio
of 0.636, which indicates it is indeed a Golden Triangles, at least to within
three significant decimal places of accuracy. If the base is indeed
exactly 230.4 meters then a perfect golden ratio would have a height of
146.53567, so the difference of only 0.3567 meters appears to be just a
measurement or rounding difference.
The Great Pyramid has a surface ratio to base ratio of Phi, the Golden
Ratio
A pyramid based on a golden triangle would have other interesting
properties. The surface area of the four sides would be a golden ratio of
the surface area of the base. The area of each trianglular side is the
base x height / 2, or 2 x Φ/2 or Φ. The surface area of the base is 2 x 2, or 4. So four sides is
4 x Φ / 4, or Φ for the ratio of sides to base.
The Great Pyramid also has a relationship to Pi
There is another interesting aspect of this pyramid. Construct a
circle with a circumference is 8, the same as the perimeter of this pyramid
with its base width of 2. Then fold the arc of the semi-circle at a right
angle, as illustrated below in “Revelation of the Pyramids”. The height
of the semi-circle will be the radius of the circle, which is 8/pi/2 or 1.273.
This is less than 1/10th of a percent different than the height of 1.272
computed above using the Golden Triangle. Applying this to the 146.5
meter height of the pyramid would result in a difference in height between the
two methods of only 0.14 meters (5.5 inches).
Its near perfect alignment to due north shows that little was left to
chance
Some say that the relationships of the Great Pyramid’s dimensions to phi
and pi either do not exist or happened by chance. Would a civilization
with the technological skill and knowledge to align the pyramid to within
1/15th of a degree to true north leave the dimensions of the pyramid to
chance? If they didn’t intend the precise 51.83 degree angle of a golden
triangle, why would they have not used another simpler angle found in divisions
of a circle such as 30, 45, 54 or 60 degrees? If the dimensions of the
pyramid were not based on both phi and pi, would it not be most reasonable to
assume that phi was used since it is based on the visible base of the pyramid
and not an invisible circle with the same circumference as that base?
Other possibilities for Phi and Pi relationships
Even if the Egyptians were using numbers that they understood to be the
circumference of the circle to its diameter and the golden ratio that appeared
in nature, it’s difficult to know if they truly understood the actual decimal
representations of pi and phi as we understand them now. Since references to
phi don’t appear in the historical record until the time of the Greeks hundreds
of years later, some contend that the Egyptians did not have this knowledge and
instead used integer approximations that achieved the same relationships and
results in the design.
A rather amazing mathematical fact is that pi and the square root of phi can be
approximated with a high degree of accuracy using simple integers. Pi can be
approximated as 22/7, resulting in a repeating decimal number 3.142857142857…
which is different from Pi by only 4/100′s of a percent. The square root of Phi
can be approximatey by 14/11, resulting in a repeating decimal number 1.2727…,
which is different from Phi by less than 6/100′s of a percent. That means that Phi
can be approximated as 256/121.
The Great Pyramid could thus have been based on 22/7 or 14/11 in the
geometry shown about. Even if the Egyptians only understood pi and/or phi
through their integer approximations, the fact that the pyramid uses them shows
that there was likely some understanding and intent of their mathematical
importance in their application. It’s possible though that the pyramid
dimensions could have been intended to represent only one of these numbers,
either pi or phi, and the mathematics would have included the other
automatically. We really don’t know with certainty how the pyramid was
designed as this knowledge could have existed and then been lost. The builders
of such incredible architecture may have had far greater knowledge and
sophistication than we may know, and it’s possible that both pi and phi as we
understand them today could have been the driving factors in the design of the
pyramid.
Construct your own pyramid to the same proportions as the Great Pyramid
Use the template below in gif or pdf format:
Taken from: http://www.goldennumber.net/phi-pi-great-pyramid-egypt/
ABSTRACT
La más antigua de las 7
maravillas del mundo:
En el maravilloso mundo del
antiguo Egipto encontramos la gran pirámide de Giza (Gizeh) construida alrededor
del año 2560 a.c con 2.300.000 bloques de piedra, en la cual ¿TODO ES ORO?
En base a las investigaciones
de arqueólogos de todos los tiempos, se puede conjeturar que la gran pirámide fue
construida con un diseño que encarna la proporción áurea, que se rige por el
número phi= , llamado
habitualmente número de oro, ya que está presente en toda la naturaleza, el
cuerpo humano, la música y otras artes.
También se dice que en la pirámide está presente el número PI y el Teorema de
Pitágoras.
Muchos dicen que las
dimensiones proporcionales a PHI o PI, o no existen, o que la construcción fue
por casualidad, pero esta última idea se refuta dando infinidad de pruebas
donde se ejemplifica la presencia del número de oro en la pirámide.
Otros afirman que los
egipcios al no tener instrumentos que permitieran construir basándose en el
número PI y el número de oro, construyeron valiéndose de aproximaciones
racionales: y .
Los constructores de esta
increíble obra de arte pueden haber tenido mucho conocimiento y tecnología,
pero nos preguntamos: ¿cómo adquirieron ese conocimiento y qué pasó con él? ¿Se
perdió?
También te invitamos a
construir tu propia pirámide de Giza a escala, que conserva las proporciones
originales.
